CH270060 DIP Power Inductor Manufacturer Customized DW5510
Features :
1. Suitable for reflow soldering process(SMT).
2. Excellent end strength with good solderability.
3. Product structure is simple, stable performance, the coil temperature difference within the small, thermal performance and high efficiency of magnetic field efficiency.
4. Can produce 0.1uH to 200uH different inductance inductance, can withstand 10A to 200A DC current, instantaneous current up to 250A, or even higher ... ....
5. According to customer requirements to design different types of inductors.
6. Lead-free products, RoHS compliant.
The scope of application for power supply, personal computers, LED power supply, industrial power supply, military power, military communications, electricity, industrial power supply, video recorders, digital cameras, audio and video equipment, automotive DC / DC converters / electric hybrid and other handheld Application of DC to DC Rectification in Power Line of Type Electronic Equipment.

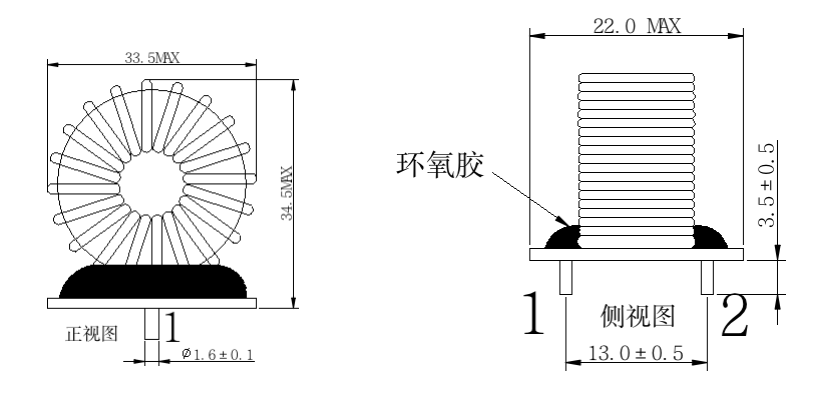

1. Drawing (Unit: mm)

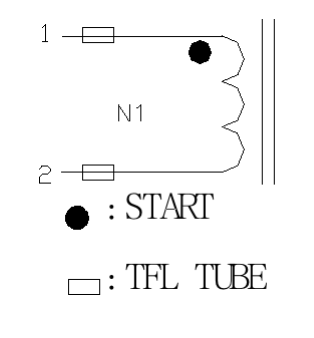

2. Stametics Diagram
3. Process of Winding
| Winding | Start | End | Wire diameter | TS | Method of Winding | Insulation Tape |
| N1 | 1 | 2 | 1PEW-Hφ1.6mm 180℃ | 32 | Bank winding | / |
4. Electrical Characteristics
| NO. | Item | Test Terminal | Test Value | Test Condition | Test Equipment |
| 1 | Inductance Value | L(1-2) | 76.8uH±12% | 100KHz 1.0V 25℃ | TH-2816 |
| L(1-2)DC | / |
| 2 | Resistance Strength | Winding to winding | / | 5mA 1MIN | CJ2670 |
| 3 | Direct Current Resistance | DCR(1-2) | 16mΩ MAX | AT:25°C | CH-502 |
| 4 | Insulation Resistance | Winding to winding | 100Mohm Min | DC 500V | MF2511 |
| Winding to Core |
| 5 | Enameled wire grade | CLASS H |
| 6 | Requirement of HSF | Refer to Customer Environmental Management Material Standards List for implementation |
Shenzhen Dowis Electronics Co., Ltd. is a professional manufacturer of electronic transformers, inductors, and filters integrating R&D, production, and sales. It is a national high-tech enterprise and has passed the IATF16949:2016 automotive industry quality management system certification, the product has passed the "UL""CQC" and other safety certifications. The products are widely used in communication equipment, new energy vehicles, industrial control equipment, high-power LED drives and other market areas. The industry has high visibility. In addition to the domestic market, but also exported to many countries in Europe and the United States.
In order to further expand production capacity, it has set up a special test area construction area in zhaoqing YueGui cooperation in 2018 of 14000 square meters of manufacturing center named ZhaoQing Sheng Xiang electronic technology co., Ltd. Its management technical team has rich experience in cooperating with customers from well-known domestic enterprises and overseas. The design of products can fully follow customer’s needs and services with a good quality control system, and it has been recognized by many famous enterprises as the core suppliers. We look forward to cooperating with you.
Product Tags:
|
|

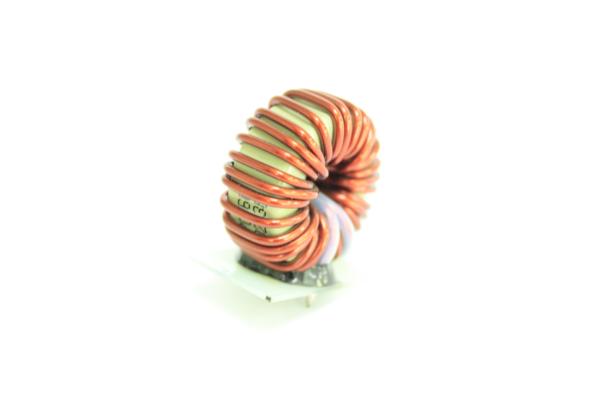

CH270060 DIP Power Inductor 76.8uH Custom Inductors Images
|
